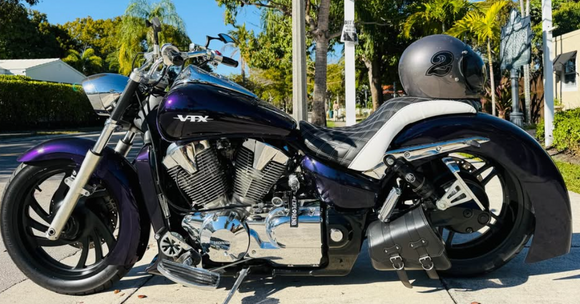

Honda VTX 1300 Air Ride Kit
click here to view the difference between this kit & our fast up kit
For all VTX Models & Years
KIT INCLUDES:
* Complete kit comes pre-wired plug & play waterproof Deutsch plugs
* Air shocks are reinforced with stainless steel tig welding at eyelids, we replace the bushings with Polyurethane Bushings, we cut & remove the Monroe stock inlet air fittings & we tap the shocks with 1/8" NPT threads for the removable 1/4" airline push to connect fittings
* 100C Viair compressor with push to connect fitting & plug & play waterproof plug
* 1/4" electric solenoid with push to connect fittings with plug & play waterproof plug
* Waterproof plug & play relay harness & momentary switch
* Stainless steel bolts, washers, push to connect T-fitting & 10' DOT 1/4" Airline
* Installation diagram click here
Shocks can be inflated or deflated as needed from 20 psi to 150 psi
Fully adjustable system
Shocks maintain ride height up to 1100 lbs. of additional weight **not including the motorcycle.
Dimensions: Compressed - 9.5"
Extended height - 14"
Travel distance - 4.5"
* ONE YEAR WARRANTY ON NON-MODIFIED PARTS
**We Recommend mounting compressor underneath swingarm if you do not have hard saddlebags or inside the hard saddlebags or on the saddlebag rails. Solenoid can be mounted behind the left sidecover inside the tool box**Relay can be installed underneath the seat**Momentary switch can be mounted on either sidecover by drilling a 1/4" hole**It is normal when mounting the air shocks to notice the shock mounting studs to not fully come out flush with outer part of the bushings**We are not responsible for improper installation**
**THESE BUSHINGS ARE MADE OF HYPERFLEX POLYURETHANE WHICH ARE MUCH MORE DURABLE THAN RUBBER, WHEN INSTALLING THE SHOCKS ON YOUR VTX, BUSHINGS MAY SEEM TIGHT BUT THEY DO FIT & ARE THE PROPER SIZE. FOR EASIER INSTALLATION RUB THE INNER HOLE OF THE BUSHINGS WITH A LITTLE GREASE. AFTER INSTALLATION YOU WILL NOTICE THE SHOCK MOUNT TOP & BOTTOM DO NOT FULLY GO THROUGH THE ENTIRE BUSHINGS THIS IS NORMAL & SAFE WHEN INSTALLED WITH OUR PROVIDED BOLTS & WASHERS, PLEASE PURCHASE BLUE LOCTITE & APPY IT TO THE BOLTS. TORQUE THE SHOCK BOLTS TO HONDA FACTORY SPECS WHICH IS 20 FT LBS. LONGER BOLTS GO ON THE TOP SHORTER GO ON THE BOTTOM**
